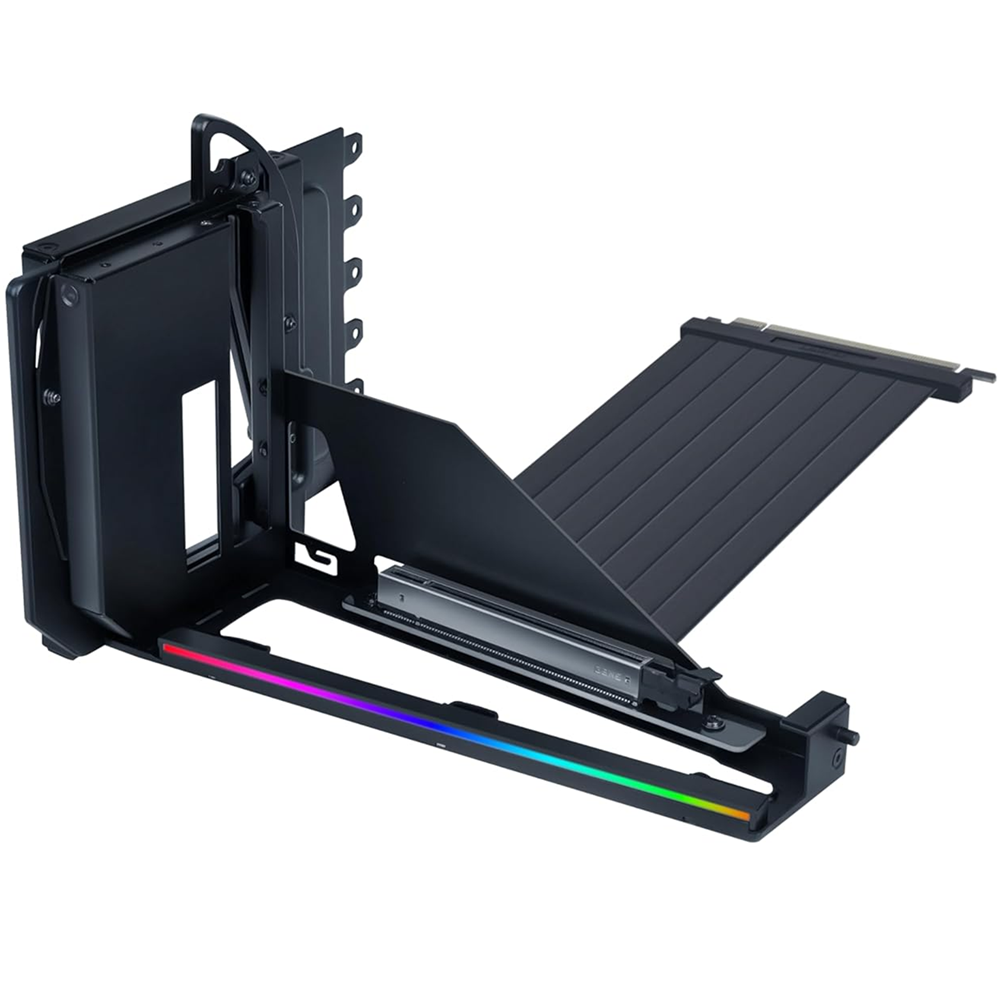

Lian Li 4 Slots Vertical GPU Kit (VG4v4) 200mm PCIe 5.0 Riser Cable, Black

94.22 USD

Item Condition : New

Select attributes to pick a specific product to buy. Price and stock might change per attributes.

  • 1 available
    • Color

Lian Li 200mm PCIe 5.0 riser cable Three-level height adjustment with 10.16mm Supports forward, neutral, and backward tilt

  • Sold by pcstore See other items
  • SKUsku_33_5515
  • ShippingOODDSS Economy Delivery 1KD,
  • Delivery Varies for items shipped from an international location
    Delivery within 4 business days
  • CountryKuwait
  • Return0 days

Details

Lian Li

  • Supports forward, neutral, and backward tilt for versatile GPU display angles
  • Three-level height adjustment with 10.16mm increments for improved airflow and cooler clearance
  • Reinforced support arm rated up to 10kg to prevent GPU sag over time
  • Integrated 5V ARGB lighting with full motherboard software synchronization
  • 200mm PCIe 5.0 riser cable delivering up to 32Gb/s bandwidth, backward compatible with PCIe 2.0–4.0
  • ATX case compatible, supporting GPUs up to four slots thick

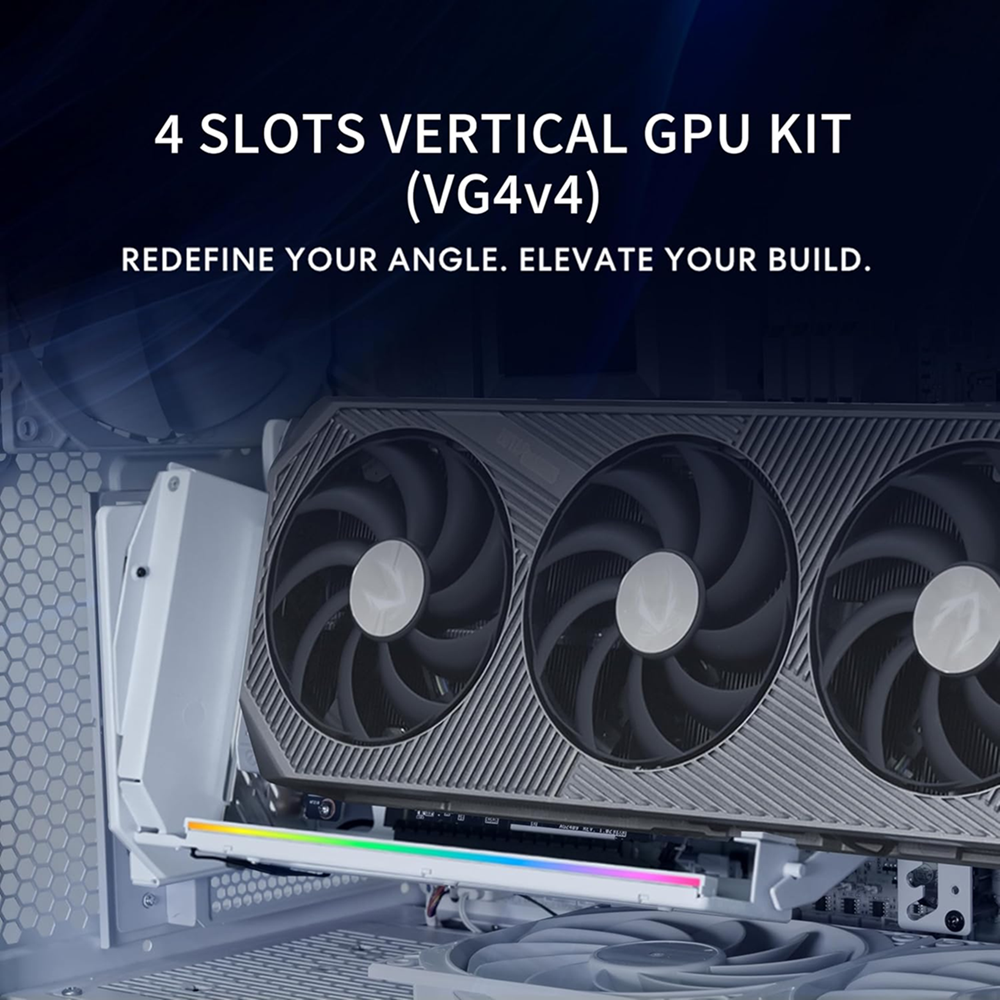

4 Slots Vertical GPU Kit (VG4v4)

Redefine Your Angle. Elevate Your Build.

VG4 v4 00

Available in Two Options

VG4 v4 01a
VG4 v4 02
VG4 v4 03

BLACK

VG4 v4 04
VG4 v4 05
VG4 v4 06

White



Note: The VG4v4 is designed to be installed with the screws already included with your case. Simply use the PCI-E bracket screws from your chassis, and up to four screws (commonly the same type as PSU screws) to secure your GPU firmly in place.

Fine-Tuned Heights,Perfected Builds

Three-Level Height Adjustment

The bracket provides three mounting heights, each adjustable in 10.16mm increments with a simple one-screw adjustment, enabling precise GPU positioning and allowing clearance for bottom fans or larger CPU coolers with ease.

VG4 v4 09

Level 1

VG4 v4 07

Level 2

(Elevated 10.16 mm above Level 1)

VG4 v4 08

Level 3

(Elevated 20.32 mm above Level 1)

vb 06

Adjusting the bracket to Level 2 or Level 3 improves compatibility with bottom-mounted fans or radiators.

vb 07

Lowering the bracket to Level 1 enhances the visibility of AIO liquid coolers with built-in displays.



Note: Once the adjustment is complete, please ensure the screw is properly secured.

THREE DISPLAY ANGLES

Each height level supports forward, neutral, and backward display angles, with dedicated mounting holes on the support arm for each position. All adjustments are quick, precise, and completely tool-free.

vb 08a

Forward

vb 09a

Neutral

vb 10a

Backward


vb 11

Forward Position
A forward tilt not only boosts airflow and
thermal efficiency but also ensures better
clearance for high-performance coolers.
(Demonstrated with LANCOOL 217)

vb 12

Backward Position
A backward tilt showcases the graphics card
with a more refined and visually appealing angle.
(Demonstrated with O11 Vision Compact)


VG4 v4 10a 1

Flexible support arm placement to suit different GPU setups.

Performance, Secured with Strength

Anti-Sag Support: Rock Solid and Reliable

The anti-sag arm supports up to 10kg with out bending and mounts directly to the motherboard standoffs. Also, it offers adjustable height settings for precise alignment, working seamlessly with 4-slot GPU configurations supported by the bracket.

VG4 v4 11a

VG4 v4 12

Users can adjust the height of the support arm based on the height settings of the bracket. Multiple height options ensure compatibility, including adjustments after rotation.

Note: Please check the GPU’s display height and tilt position, and adjust the support bracket before installation. This anti-sag bracket is not compatible with GPU brackets installed in PCIe slots 3 through 8, so ensure compatibility based on your specific setup.



Note: To adjust the anti-sag bracket height, loosen the screws first, slide the bracket along the guide slots to the desired position, and then tighten the screws.

Dual Anti-Sag Support for ATX/M-ATX and E-ATX

The bracket offers two anti-sag configurations for secure installation across multiple board sizes. ATX and M-ATX share a standard support arm, while E-ATX uses its own extension arm for proper alignment and clearance.

VG4 v4 13

For ATX / M-ATX

VG4 v4 14

For E-ATX



Note: Certain E-ATX motherboards have side accessories that may obstruct the VG4v4 anti-sag bracket. Please confirm compatibility before installation.

Note: The extension arm is required only for E-ATX installations. If your package does not include the E-ATX extension arm, please contact us through our official Contact Us page so we can assist you and arrange the necessary part.

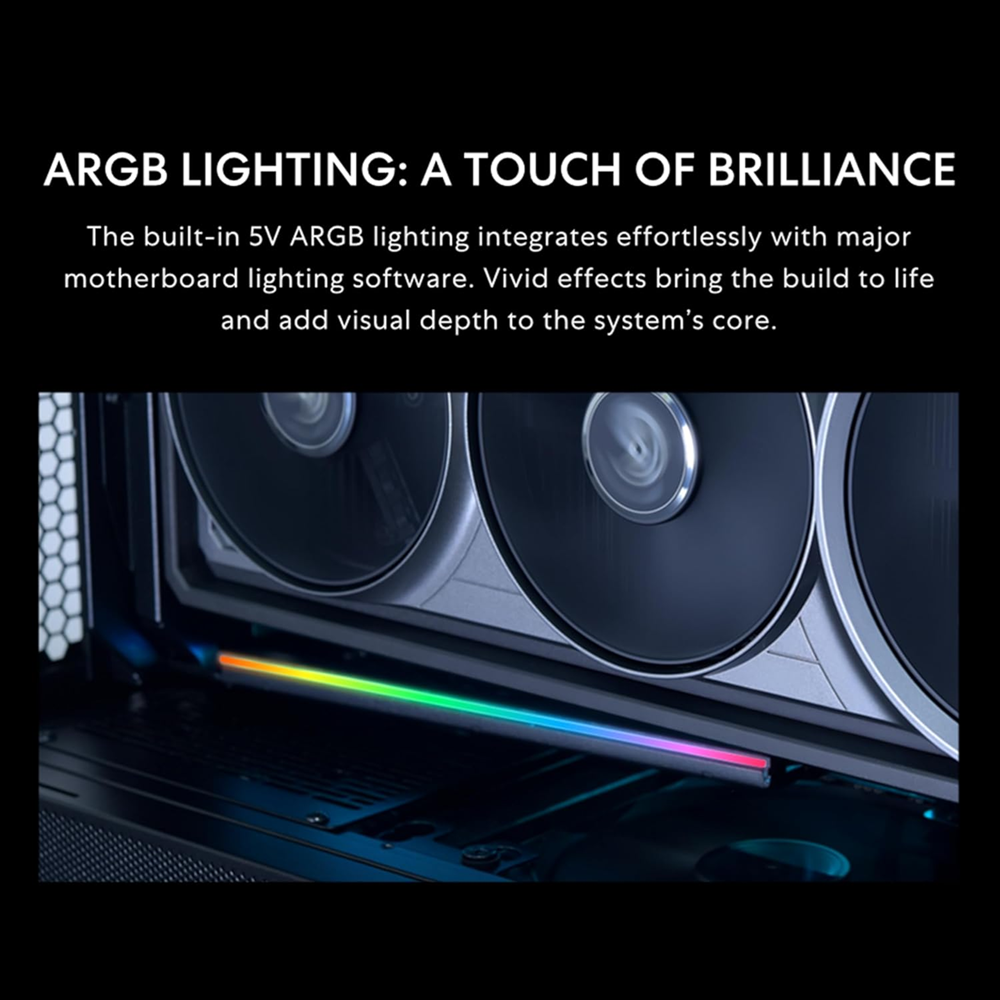

ARGB Lighting: A Touch of Brilliance

The built-in 5V ARGB lighting integrates effortlessly with major motherboard lighting software. Vivid effects bring the build to life and add visual depth to the system’s core.

vb 16
vb 20 1

Enhanced GPU Stability

The rubber pad has been refined to a slimmer profile, preventing the graphics card from being pushed upward and dislodged, ensuring a smoother and more secure installation experience.

EXPANDED REAR BRACKET FOR BETTER CASE COMPATIBILITY

The extended rear bracket design increases overall mounting length, improving compatibility with a wider range of cases.
The enlarged rear opening also provides additional clearance, making it easier to plug in thicker HDMI cables and ensuring a smoother, interference-free installation.

VG4 v4 15

PCIe 5.0 Cable Built for High Speed and full compatibility

The 200mm PCIe 5.0 riser cable delivers up to 32Gb/s bandwidth, which is twice the speed of PCIe 4.0. It supports PCIe 2.0 to 4.0 devices and ensures stable signal transmission with consistently high performance across wide range of GPUs.

VG4 v4 16
VG4 v4 17


BIOS Update: Ensure that your motherboard’s BIOS is updated to the latest version to maintain full compatibility with PCIE 5.0.

Note: Always ensure both ends of the riser cable are securely connected to the GPU and motherboard while the system is powered off. Improper installation may cause electrical short circuits or hardware damage.



Made to Match , Built to Adapt

This bracket features an adjustable slot design, supporting up to six slots for vertical installation or seven slots for angled mounting. It accommodates GPUs up to four slots thick, ensuring a perfect and secure fit for even the most high-end graphics cards.

VG4 v4 18

Note: Once installed, the bracket shifts the GPU forward by 31mm. Please ensure your case has sufficient internal depth, as more compact chassis may have limited clearance.

VG4 v4 19



SUPPORTED CASES

In addition to LIAN LI cases, any chassis from other brands that meets the above specifications can also be paired with the bracket. Users can purchase it separately for flexible use, making it an easy upgrade option for most standard ATX setups.
